The Scorpion A2-Series line of motors was designed to be a premium, high-performance power system for freestyle and UAV airplanes, delivering exceptional output through outstanding efficiency.

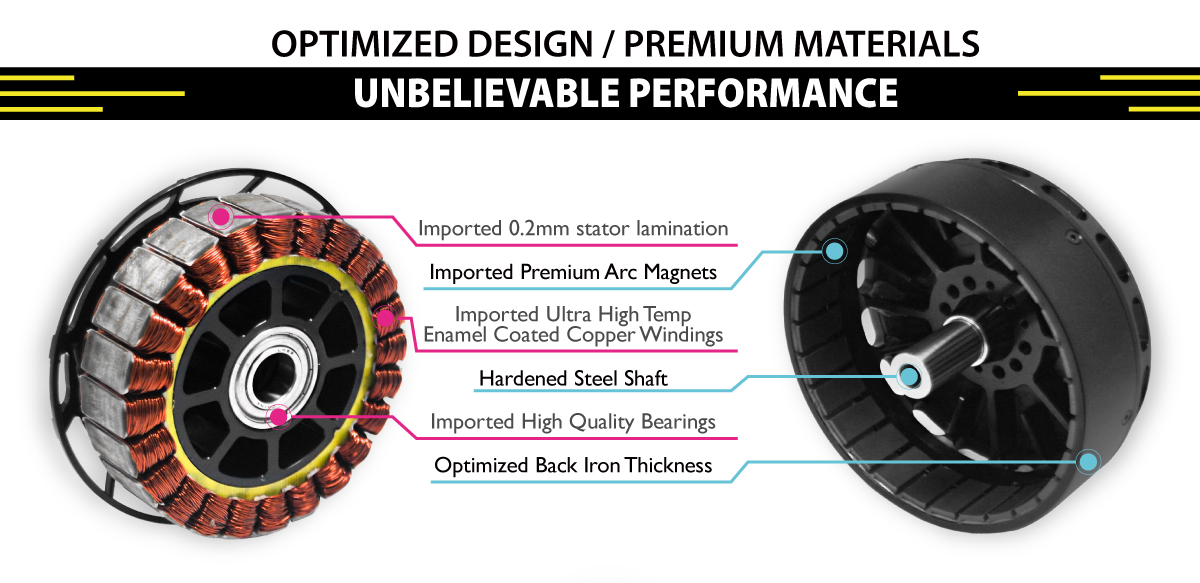

By optimizing the rotor magnet design and utilizing premium 0.2mm silicon-steel stator laminations together with high-temperature enamel-coated copper windings rated above 200°C, Scorpion has achieved exceptional power density, efficiency, and thermal performance.
Combined with a robust design that has been extensively tested by Scorpion's world-class team pilots, the A2-Series is engineered for excellent longevity, reliability, and performance.

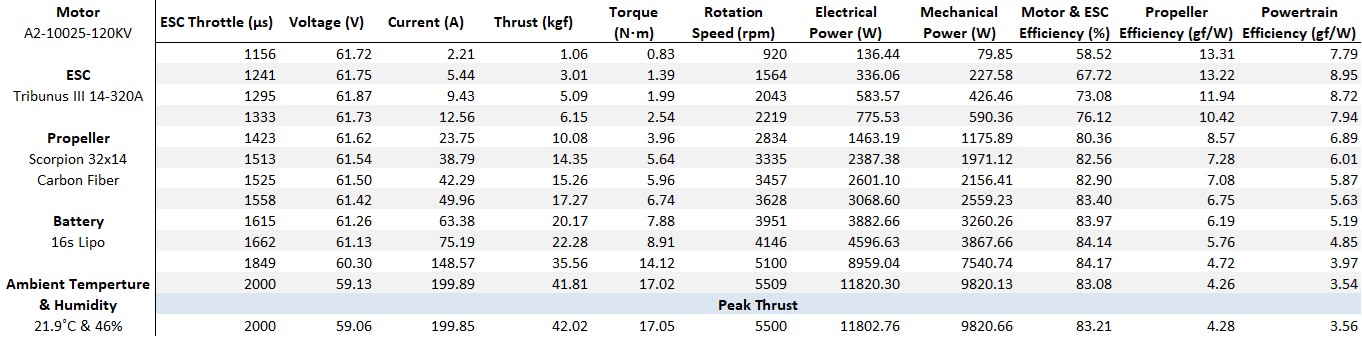

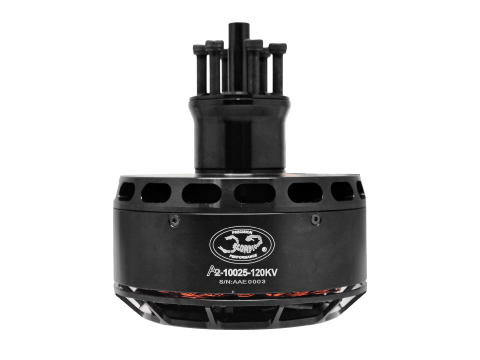

The A2-10025-120KV was designed specifically for airplanes requiring approximately 150cc–180cc gasoline-engine equivalent performance using a 16S LiPo power system, as well as UAV and specialty aircraft requiring up to approximately 13,500 watts of peak power.
* Continuous current is subject to power-percentage reduction factors. Peak power is intended for intermittent full-throttle operation ranging approximately 10–180 seconds depending on application and cooling. Refer to the Scorpion Motor Manual for additional information.
** Higher cell counts may be possible when using a smaller propeller.
