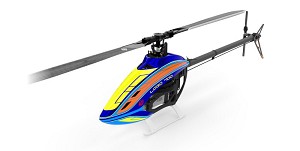

The new LOGO 700 V2 represents the next evolution of Mikado's flagship
700-class helicopter platform.
Developed around the demands of modern 5th-generation flight-control
systems, high-voltage power systems and today's extremely fast and
powerful servos, the LOGO 700 V2 incorporates numerous structural and
drivetrain improvements.
Immediately noticeable is the helicopter's lower and more compact stance,
featuring a shorter main rotor shaft, lower rotor head and a 30 mm
full-carbon tail boom requiring no external boom supports.
Internally, the V2 receives extensive chassis and drivetrain revisions.
The tail rotor now utilizes a torque-tube drive with aluminum and
reinforced-plastic bevel gears, improved gear-mesh adjustment and axial
damping of the torque tube.
The chassis has also been strengthened to increase torsional rigidity and
distribute the significantly higher mechanical loads generated by today's
high-performance power systems — without unnecessarily increasing weight
or construction complexity.
Multiple main-rotor-head damping configurations allow the LOGO 700 V2 to
accommodate a wide range of operating head speeds while maintaining the
precise, agile and predictable flight characteristics for which the LOGO
platform is known.
Recommended Radio System & Flight Control
- VBar Control EVO+ or VBar Control Touch
- VStabi EVO VLink Pro V8.2
- VBar Control Power Backup emergency power supply with telemetry
Depending on the servo system being used, an additional electrolytic
capacitor may be installed to help buffer voltage spikes and current
surges.
Recommended Motors
-
Scorpion HK5-4525-535KV (6X55mm) —
recommended for sport flying and 3D
-
Scorpion HK5-5024-535KV (6X55mm) —
recommended for high-performance 3D and competition flying
Motors with comparable dimensions and specifications may also be used.
Recommended Electronic Speed Controllers
-
Scorpion Tribunus III 150A —
recommended with the HK5-4525 motor
-
Scorpion Tribunus III 220A —
recommended with the HK5-5024 motor
ESCs featuring native VBar Control telemetry provide particularly simple
setup and direct integration with the VControl ecosystem.
