The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand 1.18mm enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!
The A-6528-180kv was designed for 90"- 95" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 7200w of power. Compared to the -200kv version, this motor is designed to swing a larger / slower spinning prop in the 24" - 26" range on 12s battery.
Recommended Prop Selection :
24x10E / 24x13E (Carbon) / 25x12E / 26x8E
Recommended ESC -: Tribunus II+ 14-200A ESC SBEC
Acrobatic Weight Range -: 8.18kg - 12.7kg (18.0lbs - 28.0lbs)
Sport / UAV (single engine) Weight Range : - 12.7kg - 36kg (28.0lbs -80lbs)
1 x Scorpion A-6528 BLDC Motor1 x A-55/65 Cross Mount (stock)4 x M4 Cross Mount Mounting Bolts3 x Female 6mm Connectors3 x Heat Shrink3 x Scorpion Stickers2 x M10 Nuts
1490g

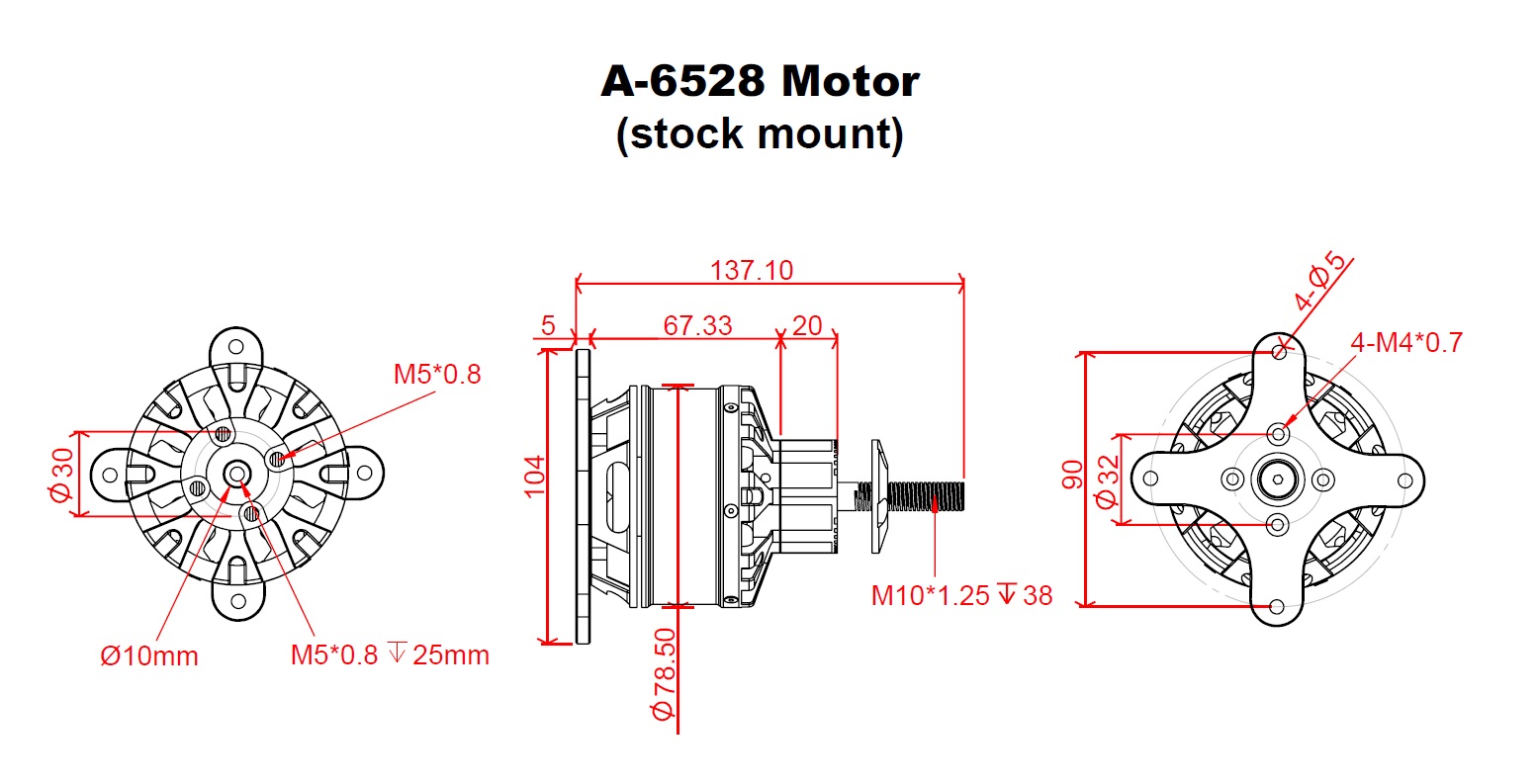

View Scorpion A-6528-180kv Full Dimension
